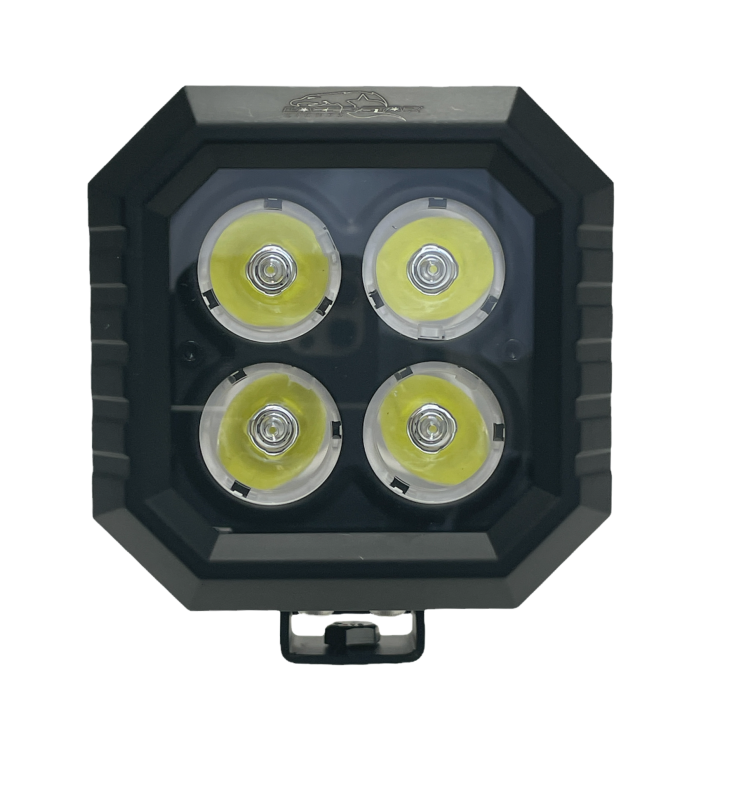

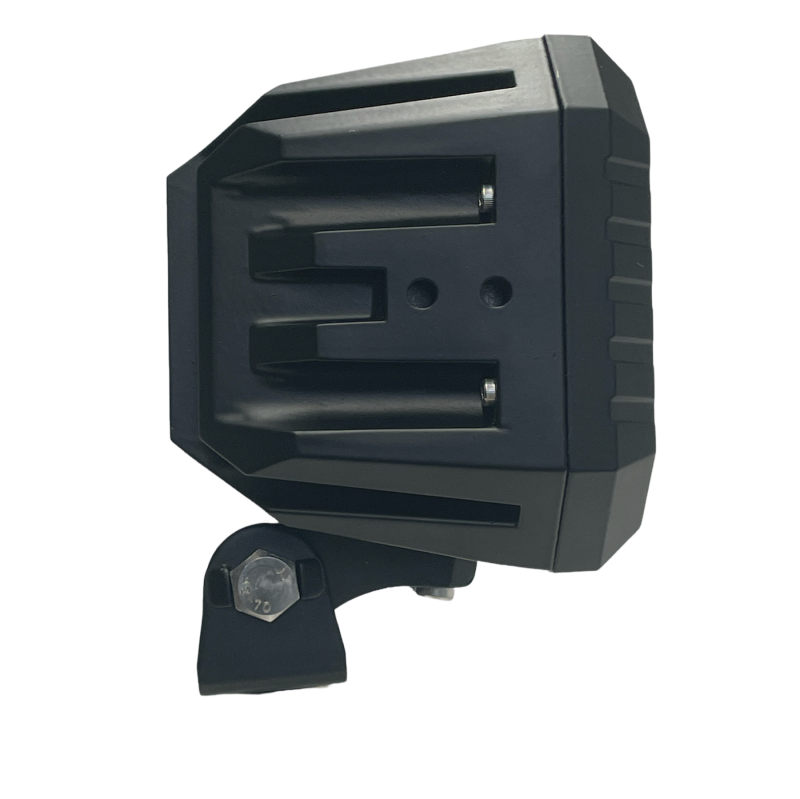

20 Watt Quad 40° Flood LXh LED
Wire Kit, Relay, and Fuse NOT Included with Utility Light Purchase
Product Dimensions: 5"H x 7"D x 6"W
20 Watts Per LED
Beam Pattern Degree: 40° Flood
Total Amp Draw @ 13.8v: 3.70
Package Weight: 3.35 lbs.
Operating Temp - 104°F ~ +122°F
50,000 Hour Life Rating
New LXh LED - The Power Of Light! A compact and rugged housing packing high-powered LED's.

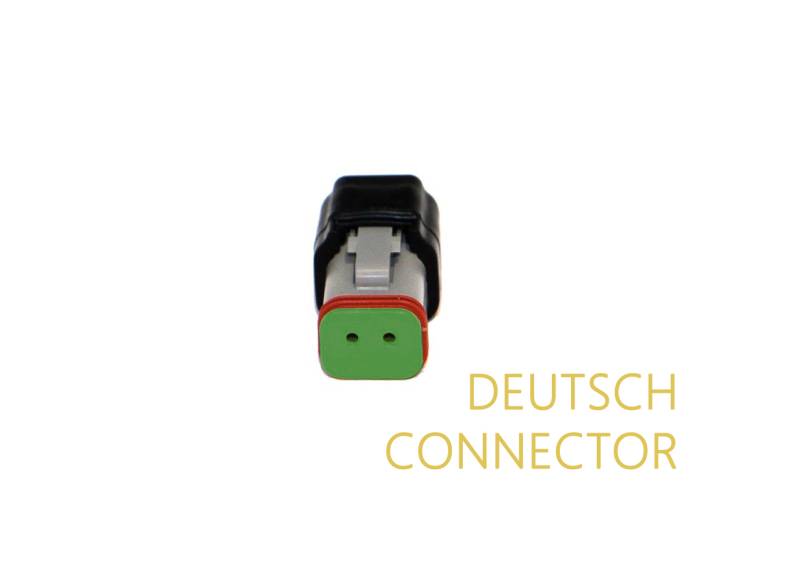

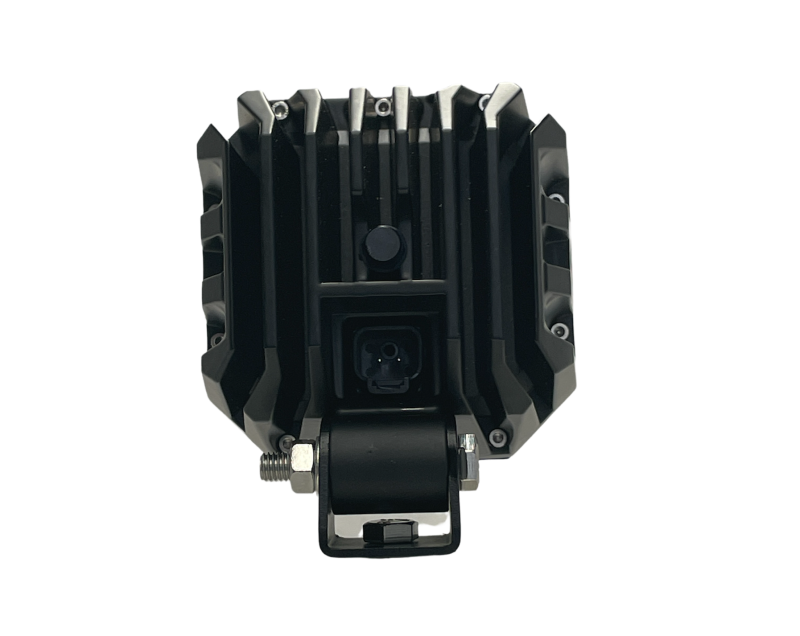

The Lazer Star Lights LXh LED Series is a high-powered solution the off-road, fire, and agricultural industries. With buyer tastes and needs leaning towards smaller, compact housings with high light output, the LXh series was an excellent solution. Offering 2,650 raw lumens per LED in a rugged and compact housing, the 20 watt 2x2LXh LED puts out a total of 10,600 raw lumens and 80 watts. The 20 Watt 2x2 LXh LED is powered by a built-in DT connector for your convenience.

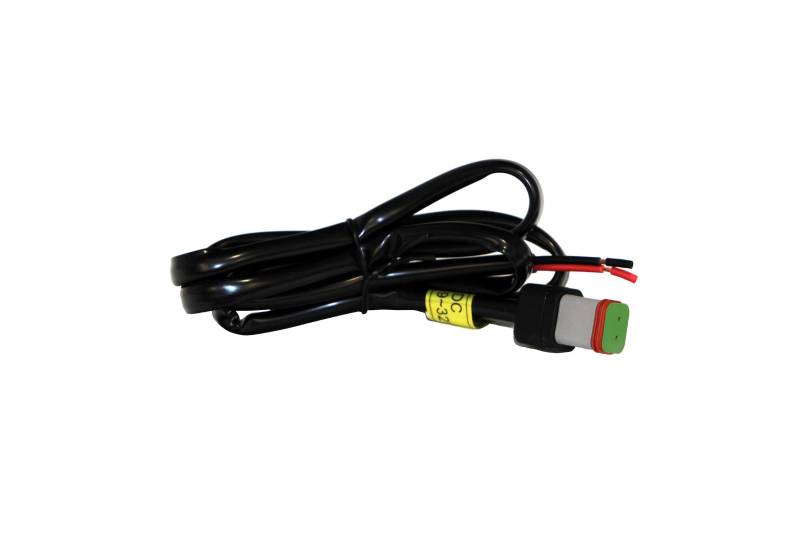

Wire kits are recommended, but not required with all LX LED purchases. Wire kits include the proper gauged wire, fused relay, and allow for the lights to be on their own switch. Wire Kits are not included with light bar, but are available separately. If you would like to browse our selection of wire kits, please click the button below.
(Note: Raw lumens is a LED manufacturer specification that differs from usable lumens and is affected by input power, temperature and age of the LED.)
Warranty & Return Policy
LIMITED WARRANTY AND RETURN PRIVILEGE:
All GOODS are warranted to be free from defects in workmanship for a period of thirty (30) days from the date of original purchase. In addition, Weekend Concepts, Inc. warrants that all metal components (body assembly and mounting hardware) of Lazer Star Lights brand are free from defects in workmanship for as long as the BUYER owns them. All LED arrays (LED & PCB) are warranted against failure for a period of three (3) years, HID electronic components (lamp & ballast) are warranted against failure for a period of (1) year. This HID coverage does not warrant against damage caused by moisture or reversed polarity. The chrome finish and black finish is warranted against cracking or flaking for a period of one (1) year and all halogen lamps, wire looms, lenses, and seals are warranted to be free from defects in workmanship for a period of ninety (90) days, from the date of original purchase.
THIS WARRANTY IS VOID IF THE GOODS (LAZER STAR LIGHTS) ARE DAMAGED AS A RESULT OF DIS-ASSEMBLY BY THE CUSTOMER (BUYER).
Weekend Concepts will not be responsible for damage or failure of any component due to misuse, abuse, acts of nature, accidents, collisions, collision with flying debris, incorrect installation, alteration or modification of any type. We will also not be responsible for any damage to the light, cover, or vehicle, incurred while negligently operating the lights with the covers affixed. This warranty does not cover any possible bodily injury and/or property damage incurred during installation or use of Lazer Star Lights. Nor does it cover any labor costs of any type. See “Installation Tips” AND THE BACK OF YOUR SALES RECEIPT for further information. For a warranty claim call 800.624.6234.
If you are not satisfied with Lazer Star Lights return them to Weekend Concepts, UNUSED and/or UNINSTALLED for a refund. ONLY products purchased directly from Weekend Concepts/Lazer Star are returnable. If you purchased your lights from a retailer or dealer, please contact that dealer for their return policy.
There is a 20% restocking fee for each item returned. Shipping charges are not reimbursed.
Weekend Concepts will not be responsible for any incoming shipping charges on returns or warranty matters. Your original invoice (or a copy) is required for any warranty claim or return. Weekend Concepts RA (Returned Authorization) number is required for all returns. Weekend Concepts, Inc. reserves the right to amend or modify this policy at any time.
NOTICE: Lazer Star Lights are protected by United States Patents D427, 696, D440, 330 & D463, 048. Other Patents Pending.
If you have any questions or comments, or if you need further assistance please call us at 800.624.6234 or email firstname.lastname@example.org
© 2010-2014 Weekend Concepts, Inc. All Rights Reserved.
- Item Requires Shipping
- 3.4 lbs.
- W6.0000” x H5.0000” x L7.0000”
